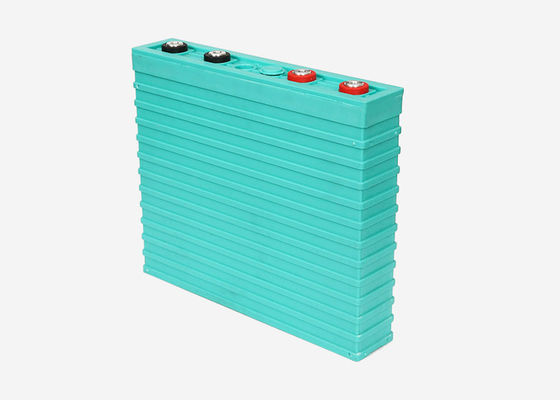

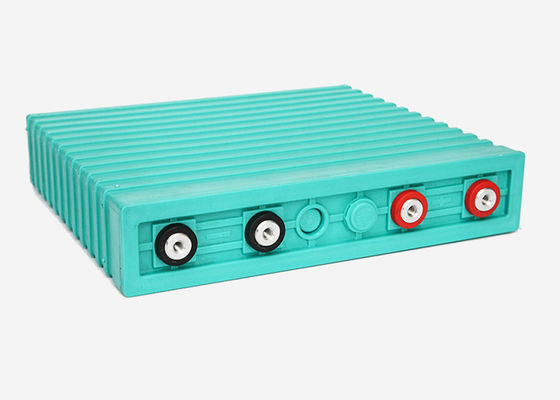

    3.2V 400Ah Rechargeable Lithium Ion Battery For Electric Vehicles High Security

    Product Details:

    Place of Origin: CHINA
    Brand Name: GBS
    Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001
    Model Number: GBS-LFP400Ah

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: special carton for dangerous goods
    Delivery Time: 3-10 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1800000 PCS PER YEAR
    Get Best Price Contact Now

    Detail Information

    Application: EV Warranty: 38 Months
    Life Cycle: More Than 3000 Cycles Weight: 13.2kgs
    Capacity: 400Ah Voltage: 3.2V
    High Light:

    lithium ion battery for electric vehicles

    ,

    lithium batteries for electric vehicles

    Product Description

    3.2V 400Ah Rechargeable Lithium Ion Battery For Electric Vehicles High Security

    made in China rechargeable 3.2V400Ah lithium power batter.for electric vehicles GBS-LFP400Ah





    Feature:

    1. Long life, large capacity and good shock resistance

    2. Low self-discharge and good discharge performance at low temperature

    3. Strong charging acceptance and quick-charging capability

    4. Strong over-discharge resistance and charge retention





    Item

    Specification

    Remark

    Rated capacity

    400Ah

    0.2C rate discharge capacity

    Minimum capacity

    400Ah

    Internal impedance

    ≤0.5mΩ



    Nominal voltage

    3.2V



    weight

    13.2±0.15KG



    Standard discharge

    conditions

    Constant current

    200A



    End-of-discharge voltage

    2.5V



    Standard charge method

    Constant current

    100A



    Charge voltage

    3.55V



    Fast charge method

    Constant current

    400A



    Charge voltage

    3.55V



    Max continuous discharge current

    800A



    Cycle life

    3000 cycles

    80% DOD

    Operating temperature

    Charging ambient

    temperature

    0~65°C



    Discharging ambient

    temperature

    -20~65°C



    Storage temperature

    -20~65°C



    Appearance

    Without break,

    distortion, contamination,

    leakage.





    3.2V 400Ah Rechargeable Lithium Ion Battery For Electric Vehicles High Security 0





    Basic Performance

    (1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

    (2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

    (3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

    (4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

    (5) Good cycle life time, the discharge capacity is still over 80% after 2000cycle times of single cell(80%DOD).

    (6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

    (7) Low cost.

    (8) No pollution during manufacture and usage.





    Matters needing attention

    (1) Please check if spare parts are completed when open the package and read the operation manual carefully.

    (2) Do not make the battery Short Circuit,do not over charge and discharge.

    (3) Please charge the new battery to full capacity before discharge for the first use.

    (4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

    (5) Checking the voltage of battery, normally it is 3.2V-3.3V.

    (6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

    (7) Rivet or screw is used for battery connector.

    (8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.

    (9) The charger used should be approved by our company in order to match with our lithium batteries.

    (10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.



    Requirement for safety assurance

    For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
