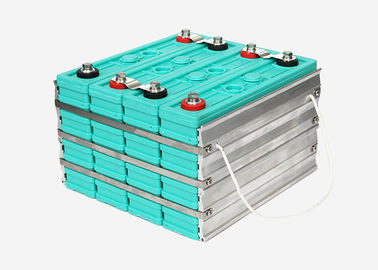

Rechargeable LiFePo4 Electric Vehicle Battery Cell 12V 160Ah With Plastic Case

Rechargeable LiFePo4 Electric Vehicle Battery Cell 12V 160Ah With Plastic Case

lithium ion battery for electric vehicles

lithium batteries for electric vehicles

Place of Origin:

CHINA

Brand Name:

GBS

Certification:

CE, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number:

GBS-LFP160Ah

Contact Us

Request A Quote
Product Details
Application:
EV, Telecom, Solar Energy
Warranty:
38 Months
Life Cycle:
More Than 3000 Cycles
Battery Type:
Lifepo4
Voltage:
12V
Capacity:
160Ah
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
special carton for dangerous goods
Delivery Time
3-10 DAYS
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1800000 PCS PER YEAR
Product Description

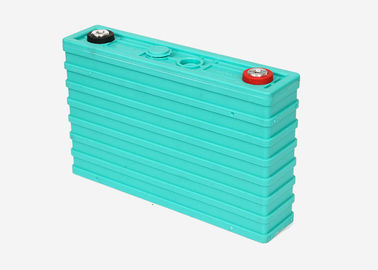

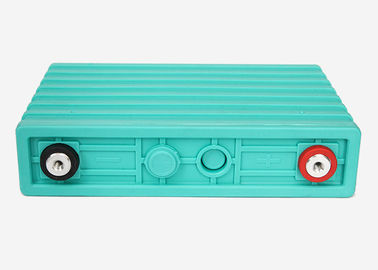

prismatic Rechargeable 3.2V 160Ah LiFePo4 battery cell with plastic case for EV, trolley bus GBS-LFP160Ah



Applications:



Electric bike, electric bicycle, Escooter, electric trikes, better bikes, folding e-bikes, velomobiles, pedicabs, motorscooters, motorcycles, LEV and etc







Item Specification Remark
Rated capacity 160Ah 0.2C rate discharge capacity
Minimum capacity 160Ah
Internal impedance ≤2.5mΩ
Nominal voltage 12V
Cell weight 21.0±0.15KG

Standard discharge

conditions

Constant current 80A
End-of-discharge voltage 11.2V
Standard charge method Constant current 40A
Charge voltage 14.2V
Fast charge method Constant current 160A
Charge voltage 14.2V
Max continuous discharge current 480A
Cycle life 2000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~65°C

Discharging ambient

temperature

-20~65°C
Storage temperature -20~65°C
Appearance

Without break,

distortion, contamination,

leakage



Cell Size



Item Description Dimensions

L Length 288mm

W Width 290mm

H Height 181mm
















Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.











Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 3.2V-3.3V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
