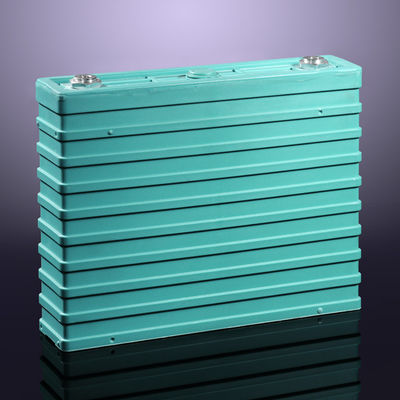

Long Lasting Prismatic Lifepo4 Cells 200Ah-A , Lithium Ion Rechargeable Battery

Product Details

Place of Origin: Zhejiang, China

Brand Name: GBSystem

Certification: Ce, TUV, PONY, MA, ISO9001, ISO14001, OHASA18001

Model Number: GBS-LFP200Ah-B

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiable

Packaging Details: Special Carton for Dangerous Goods

Delivery Time: 10 work days

Supply Ability: 1000000 Piece/Pieces per Year

Get Best Price
Contact Now
Specifications
High Light:

lithium iron phosphate cells

,

lithium iron phosphate prismatic cells

Application:
EV, Telecom, Solar Energy, Motorcycle
Warranty:
38 Months
Cycle Life:
More Than 3000 Times
Weight:
6.5 ± 0.1kg
Payment:
TT/LC
Package:
Special Carton For Dangerous Goods
Dimension:
290*66*238mm
Shape:
Prismatic
HS Code:
8507600090
Application:
EV, Telecom, Solar Energy, Motorcycle
Warranty:
38 Months
Cycle Life:
More Than 3000 Times
Weight:
6.5 ± 0.1kg
Payment:
TT/LC
Package:
Special Carton For Dangerous Goods
Dimension:
290*66*238mm
Shape:
Prismatic
HS Code:
8507600090
Description
Long Lasting Prismatic Lifepo4 Cells 200Ah-A , Lithium Ion Rechargeable Battery

Prismatic cells 200Ah-A LiFePO4 battery for solar / wind energy storage



Features:


Long Cycle Life: Can be recharged for use for over 1,000 times. No memory effect.
High Safety: Assemble with Korea, Japan cells. High and stable performance & heat resistant. Top design and technology to prevent risk of explosion. The battery pack is impact-proof and can sustain heavy external shocks.
Reliable Quality:
For quality assurance, we use Japanese cell with new mixing formula "Li-ion" to assemble battery pack that guarantee our running distance and safe requirement are up-to standard.



Specification





Item



Specification





Model



GBS-LFP200Ah-B



Rated capacity



200Ah



Nominal voltage



3.2V



Internal impedance



≤0.8mΩ



Standard charge



0.5C



Fast charge



1C



End of charge



3.65V



Standard discharge



0.5C



Max discharge



1C



Instantaneous discharge



3C(10s)



End of discharge



3.0V



Working temperature



-20-65℃



Cycle life



3000 cycles(0.5C)



Weight



6.5kg



Dimensions



290×66×238mm



Shell



PP







Certificates





Long Lasting Prismatic Lifepo4 Cells 200Ah-A , Lithium Ion Rechargeable Battery 0Long Lasting Prismatic Lifepo4 Cells 200Ah-A , Lithium Ion Rechargeable Battery 1





Company Information





Long Lasting Prismatic Lifepo4 Cells 200Ah-A , Lithium Ion Rechargeable Battery 2



Why Choose Us







(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.





(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.





(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.





(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.





(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).





(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.





(7) Low cost.





(8) No pollution during manufacture and usage.







Exhibition







Long Lasting Prismatic Lifepo4 Cells 200Ah-A , Lithium Ion Rechargeable Battery 3







Production Line







Long Lasting Prismatic Lifepo4 Cells 200Ah-A , Lithium Ion Rechargeable Battery 4



      1. Coating                                    5. Formation



      2. Cutting                                     6. Grading



      3. Stacking                                   7. Finishing product



      4. Sealing                                     8. Packing







Attentions





(1) Please check if spare parts are completed when open the package and read the operation manual carefully.





(2) Do not make the battery Short Circuit,do not over charge and discharge.





(3) Please charge the new battery to full capacity before discharge for the first use.





(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.





(5) Checking the voltage of battery, normally it is 3.2V-3.3V.





(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.





(7) Rivet or screw is used for battery connector.





(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.





(9) The charger used should be approved by our company in order to match with our lithium batteries.





(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirements For Safety Assurance





For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
