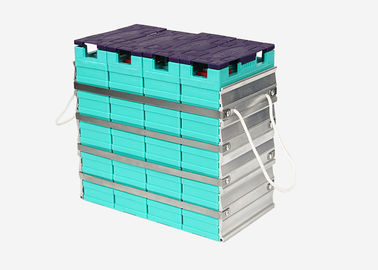

    100Ah-B Lifepo4 Lithium Iron Phosphate Battery Packs For EV / Telecom Use

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: GBSystem
    Certification: Ce, TUV, PONY, MA, ISO9001, ISO14001, OHASA18001
    Model Number: GBS-LFP100Ah-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Special Carton for Dangerous Goods
    Delivery Time: 10 work days
    Supply Ability: 1000000 Piece/Pieces per Year
    Get Best Price Contact Now

    Detail Information

    Application: EV, Telecom, Solar Energy, Motorcycle Warranty: 38 Months
    Cycle Life: More Than 3000 Times Weight: 3.0 ± 0.1kg
    Payment: TT/LC Package: Special Carton For Dangerous Goods
    Dimension: 140*62*242mm Shape: Prismatic
    HS Code: 8507600090
    High Light:

    lithium iron phosphate cells

    ,

    lithium iron phosphate prismatic cells

    Product Description

    100Ah-B Lifepo4 Lithium Iron Phosphate Battery Packs For EV / Telecom Use

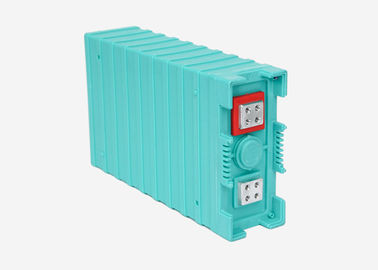

    Prismatic cells 100Ah-B LiFePO4 battery for solar / wind energy storage





    Application



    1 . Solar energy system, energy storage system , like UPS .
    2 . Golf carts , electric cars , motorcycles , car starter batteries , trolleys , electric boats , AGV, etc.
    3 . A replacement of Sealed lead-acid battery.
    4 . Forklifts , washing machines , powerhouses , etc .
    5 . Others , power tools



    Why Choose Us



    (1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

    (2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

    (3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

    (4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion

    (5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

    (6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

    (7) Low cost.

    (8) No pollution during manufacture and usage.




    Demension







    100Ah-B Lifepo4 Lithium Iron Phosphate Battery Packs For EV / Telecom Use 0





    Specification





    Item



    Specification





    Model



    GBS-LFP100Ah-B



    Rated capacity



    100Ah



    Nominal voltage



    3.2V



    Internal impedance



    ≤1.0mΩ



    Standard charge



    0.5C



    Fast charge



    1C



    End of charge



    3.65V



    Standard discharge



    0.5C



    Max discharge



    1C



    Instantaneous discharge



    3C(10s)



    End of discharge



    3.0V



    Working temperature



    -20-65℃



    Cycle life



    3000 cycles(0.5C)



    Weight



    2.8kg



    Dimensions



    140×62×242mm



    Shell



    PP







    Certificates





    100Ah-B Lifepo4 Lithium Iron Phosphate Battery Packs For EV / Telecom Use 1100Ah-B Lifepo4 Lithium Iron Phosphate Battery Packs For EV / Telecom Use 2











    Exhibition







    100Ah-B Lifepo4 Lithium Iron Phosphate Battery Packs For EV / Telecom Use 3







    Production Line







    100Ah-B Lifepo4 Lithium Iron Phosphate Battery Packs For EV / Telecom Use 4



          1. Coating                                    5. Formation



          2. Cutting                                     6. Grading



          3. Stacking                                   7. Finishing product



          4. Sealing                                     8. Packing







    Attentions





    (1) Please check if spare parts are completed when open the package and read the operation manual carefully.





    (2) Do not make the battery Short Circuit,do not over charge and discharge.





    (3) Please charge the new battery to full capacity before discharge for the first use.





    (4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.





    (5) Checking the voltage of battery, normally it is 3.2V-3.3V.





    (6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.





    (7) Rivet or screw is used for battery connector.





    (8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.





    (9) The charger used should be approved by our company in order to match with our lithium batteries.





    (10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







    Requirements For Safety Assurance





    For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
