Product Details
Place of Origin: Zhejiang, China
Brand Name: GBSystem
Certification: Ce, TUV, PONY, MA, ISO9001, ISO14001, OHASA18001
Model Number: GBS-LFP60Ah
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Special Carton for Dangerous Goods
Delivery Time: 10 work days
Supply Ability: 1000000 Piece/Pieces per Year
Application: |
EV, Telecom, Solar Energy, Motorcycle |
Warranty: |
38 Months |
Cycle Life: |
More Than 3000 Times |
Weight: |
2.0 ± 0.1kg |
Payment: |
TT/LC |
Package: |
Special Carton For Dangerous Goods |
Dimension: |
126*65*190mm |
Shape: |
Prismatic |
HS Code: |
8507600090 |
Application: |
EV, Telecom, Solar Energy, Motorcycle |
Warranty: |
38 Months |
Cycle Life: |
More Than 3000 Times |
Weight: |
2.0 ± 0.1kg |
Payment: |
TT/LC |
Package: |
Special Carton For Dangerous Goods |
Dimension: |
126*65*190mm |
Shape: |
Prismatic |
HS Code: |
8507600090 |

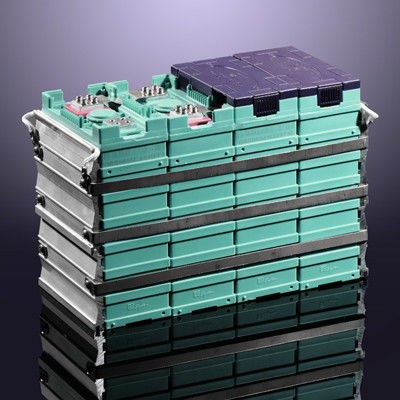

deep cycle lifepo4 battery 60ah lithium ion battery packs with 3000 cycles for electric vehicle
Features:
a. Low self-discharge and good discharge performance at low-temperature.
b. Strong charging acceptance and quick-charging capability.
c. Strong over-discharge resistance and charge retention.
d. Maintenance-free and no acid or water for maintenance in usage.
e. Large current discharge performance and have obvious advantages in start up and climbing.
f. High-temperature performance.
g. Eco-friendly.
h. Lightweight and small in size.
Demension
Specification
Item |
Specification
|
Model
|
GBS-LFP60Ah |
Rated capacity
|
60Ah |
Nominal voltage
|
3.2V |
Internal impedance
|
≤1.5mΩ |
Standard charge
|
0.5C |
Fast charge
|
1C |
End of charge
|
3.65V |
Standard discharge
|
0.5C |
Max discharge
|
1C |
Instantaneous discharge
|
3C(10s) |
End of discharge
|
2.8V |
Working temperature
|
-20-65℃ |
Cycle life
|
3000 cycles(0.5C) |
Weight
|
2.0kg |
Dimensions
|
126×65×190mm |
Shell
|
PP |
Certificates
Company Information
Why Choose Us
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.
Exhibition
Production Line
1. Coating 5. Formation
2. Cutting 6. Grading
3. Stacking 7. Finishing product
4. Sealing 8. Packing
Attentions
(1) Please check if spare parts are completed when open the package and read the operation manual carefully.
(2) Do not make the battery Short Circuit,do not over charge and discharge.
(3) Please charge the new battery to full capacity before discharge for the first use.
(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
(5) Checking the voltage of battery, normally it is 3.2V-3.3V.
(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.
(9) The charger used should be approved by our company in order to match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.
Requirements For Safety Assurance
For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
Service line: +86-400-884-7799
