100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery

100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery

lithium ion battery for electric vehicles

lifepo4 ev battery pack

Place of Origin:

Zhejiang, China

Brand Name:

GBSystem

Certification:

Ce, TUV, PONY, MA, ISO9001, ISO14001, OHASA18001

Model Number:

GBS-LFP100Ah-A

Contact Us

Request A Quote
Product Details
Application:
EV, Telecom, Solar Energy, Motorcycle
Warranty:
38 Months
Cycle Life:
More Than 3000 Times
Weight:
2.8 ± 0.1kg
Payment:
TT/LC
Package:
Special Carton For Dangerous Goods
Dimension:
126*65*243mm
Shape:
Prismatic
HS Code:
8507600090
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Packaging Details
Special Carton for Dangerous Goods
Delivery Time
10 work days
Supply Ability
1000000 Piece/Pieces per Year
Product Description

deep cycle lifepo4 battery 100ah-A lithium ion battery packs with 3000 cycles for electric vehicle



Key Features



1. Higher energy density and lower weight than other types rechargeable batteries.

2. Good temperature performance.

3. High security, no explosion and no fire.

4. Light and thinner, popular in digital products.

5. High discharge rate.

6. Strong charging acceptance and quick –charging capability.

7. Maintenance-free, no need to use acid or water.

8. Long cycle life and high stability.

9. Excellent high current discharge performance especially in startup and climbing.

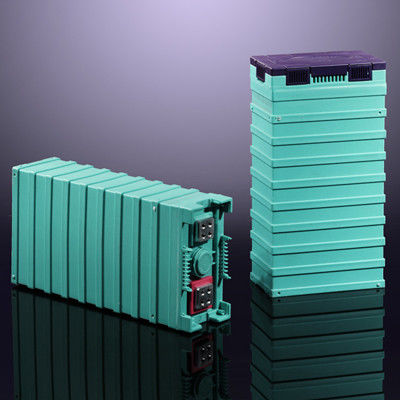

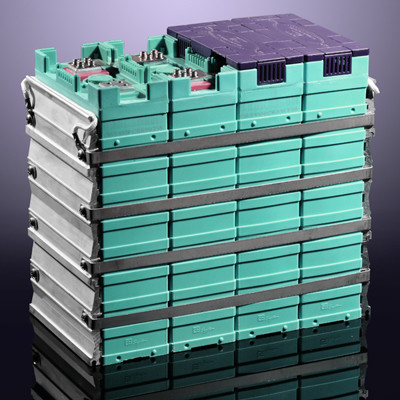

Detailed Images





100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery 0







100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery 1





100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery 2


Demension







100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery 3





Specification





Item



Specification





Model



GBS-LFP100Ah-A



Rated capacity



100Ah



Nominal voltage



3.2V



Internal impedance



≤1.0mΩ



Standard charge



0.5C



Fast charge



1C



End of charge



3.65V



Standard discharge



0.5C



Max discharge



1C



Instantaneous discharge



3C(10s)



End of discharge



2.8V



Working temperature



-20-65℃



Cycle life



3000 cycles(0.5C)



Weight



2.8kg



Dimensions



126×65×243mm



Shell



PP







Certificates





100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery 4100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery 5





Company Information





100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery 6

Why Choose Us



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.





(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.





(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.





(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.





(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).





(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.





(7) Low cost.





(8) No pollution during manufacture and usage.







Exhibition







100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery 7







Production Line







100ah Lithium Ion Electric Vehicle Battery , Lifepo4 Lightweight Lithium Car Battery 8



      1. Coating                                    5. Formation



      2. Cutting                                     6. Grading



      3. Stacking                                   7. Finishing product



      4. Sealing                                     8. Packing







Attentions





(1) Please check if spare parts are completed when open the package and read the operation manual carefully.





(2) Do not make the battery Short Circuit,do not over charge and discharge.





(3) Please charge the new battery to full capacity before discharge for the first use.





(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.





(5) Checking the voltage of battery, normally it is 3.2V-3.3V.





(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.





(7) Rivet or screw is used for battery connector.





(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.





(9) The charger used should be approved by our company in order to match with our lithium batteries.





(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirements For Safety Assurance





For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
