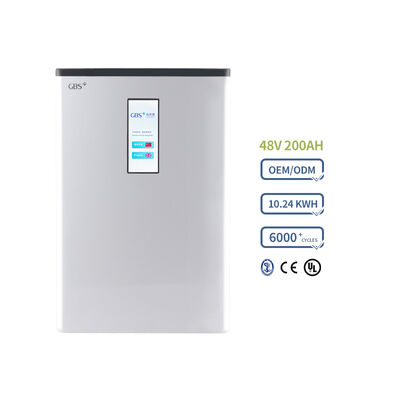

CE UL 51.2v 48v 100ah 200ah Wall Mounted l 10Kwh Lifepo4 Home Battery Solar Energy Storage Lifepo4 Battery

Brand Name:	GBSystem
Model Number:	GBS-LFP-100Ah
MOQ:	1
Price:	€612.97-744.32

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Battery Type:

LiFePO4

Output Power Range:

5~10 KWh

Dimension (L*W*H):

460x 170x740mm

Weight:

52kg, 50kg

System Type:

Wall-Mounted

Communication Port:

Rs485

Protection Class:

IP54, IP64, IP65, IP55

Grid Connection:

Off Grid, Hybrid Grid

Storage Energy:

5.12Kwh

Working Voltage:

46.4-57.6V

Dimension:

460*170*740mm

Storage Tempt:

-20℃-45℃

Relative Humidity:

5%-95%

Connection Way:

16S1P

Power Source:

Other

Highlight:

wall mounted lifepo4 home battery

10kwh solar energy storage

48v lifepo4 battery with warranty

Product Description

CE UL 51.2V 48V 100Ah 200Ah Wall Mounted 10KWh LiFePO4 Home Battery Solar Energy Storage

Safe and Reliable Battery Pack Solution

This advanced energy storage solution features LiFePO4 battery cells with integrated BMS for optimal performance and safety. The system supports capacity expansion through parallel connection and offers flexible installation options including ground and wall mounting.

Charging Sources: Grid or solar energy
Discharge Options: Grid or solar energy
Expandable capacity through parallel connection
Flexible installation: wall-mounted or ground-mounted

Technical Specifications

Model	GBSFP51100LV-1	GBSFP51100LV-2
Rated Voltage	51.2V
Nominal Capacity	100Ah
Energy	5.12KWh
Discharge Current	0-100A
Discharging Protection Voltage	43.2V
Charge Current	0-100A
Balancing Charging Voltage	56.8V
Float Charging Voltage	54.4V
Cycle Life	6000 cycles
Size (W×D×H)	460×170×740mm
Weight	52Kg
Charging Temperature	0-65°C
Discharging Temperature	-20 to 65°C
Relative Humidity	5% to 95%
Protection Functions	Over charge, over discharge, short circuit, over load, high temperature, low temperature, etc.
Matching Inverter Power	≤5KW
Installation	Wall-mounted type, ground type
Display	Include	Not include

Compatible with most inverters in the market:
Deye, Growatt, GOODWE, Victron, SOFAR, MEGAREVO, PYLON, Sol-Ark, SRNE

Application Scenarios

Frequently Asked Questions

When will you ship the products when payment is done?

Trial order: 3-7 work days, formal order: 7-20 work days.

Is the sample available?

Yes, but it is charged.

Can I get a lower price if I order large quantities?

Yes.

Are you a factory?

Yes, we are the manufacturer of GBS LiFePO4 battery.

How do you ship the goods and how long will it take?

Normally by sea. Shipping time depends on destination port. But we can also make shipment by UPS and Fedex for trial order.

What is warranty?

2 years.

Why does it seem your price little higher than other factories?

We always supply High-Quality products & High-Stand service to our clients.
