Product Details
Place of Origin: Zhejiang, China
Brand Name: GBS
Certification: CE,TUV,UL,IEC,ISO9001,ISO14001,OHSAS18001
Model Number: GBS-LFP100Ah-A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 7 work days
Payment Terms: T/T
Material: |
LiFePO4 |
Dimension: |
126x65x243mm |
Warranty: |
2 Years |
Application:: |
Electric Sprayer, Solar Systems, Garden Lighting, Sound Systems, UPS |
Material: |
LiFePO4 |
Dimension: |
126x65x243mm |
Warranty: |
2 Years |
Application:: |
Electric Sprayer, Solar Systems, Garden Lighting, Sound Systems, UPS |

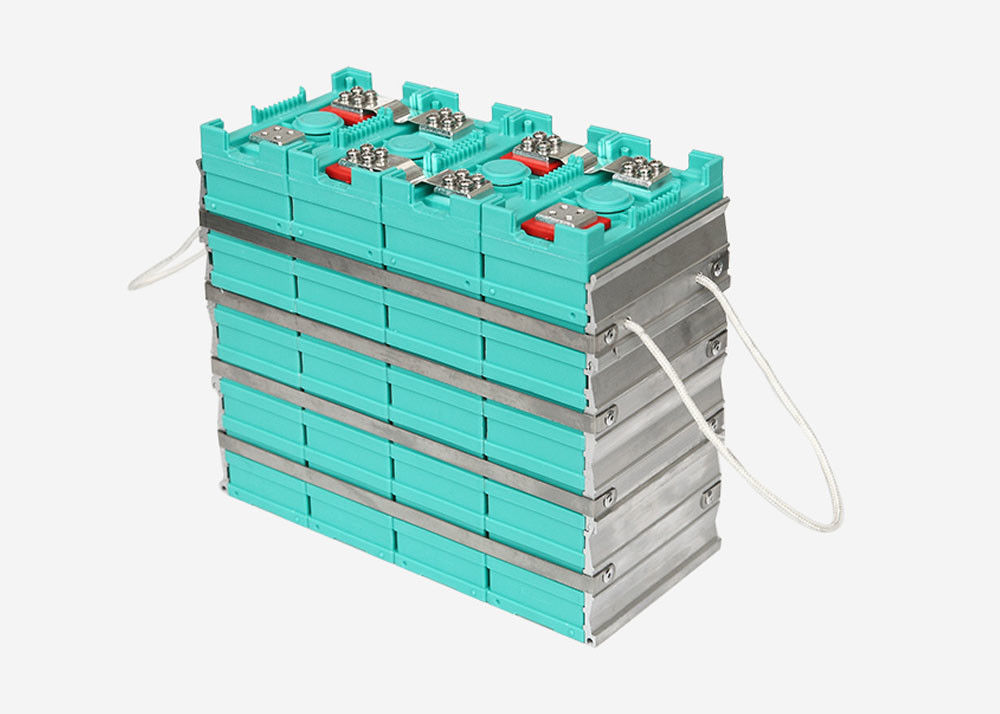

Plastic shell lithium iron phosphate battery 3.2v
Specifications
Good performance under high and low temperature;
Good safety performance;
Good cycle life time;
No pollution during manufacture.
The main specifications
• Higher discharge electric bicycles, scooters, solar energy battery packs;
• We provide a full-capacity battery instead of its actual capacity
• You don’t need worry about the whole system, because we have engineers help you adjust BMS and charger, our customers only need to enjoy the convenience of use
• Lighter weight and the best optimized size
• Lighter weight means less total weight, and longer energy
Certifications:
|
Application: |
|
Electric vehicle |
|
Golf cart |
|
Electric motorcycle |
|
Electric boat |
|
Electric forklift |
|
Telecommunication |
|
Distributed Grid Energy Storage system |
|
Mining equipment |
|
Solar energy storage system |
|
Marine |
|
Backup power |
Cell Dimension:
Specification of battery cell
GBS-LFP100Ah-A
|
Item |
Specification |
Remark |
||
|
4.1 Rated capacity |
100Ah |
0.33C rate discharge capacity |
||
|
4.2 Minimum capacity |
100Ah |
|||
|
4.3 Internal impedance |
≤0.6mΩ |
|
||
|
4.4 Nominal voltage |
3.2V |
|
||
|
4.5 Cell weight |
2.8±0.1KG |
|
||
|
4.6 Standard discharge conditions |
Constant current |
50A |
|
|
|
End-of-charge voltage |
2.8V |
|
||
|
4.7 Standard charge method |
Constant current |
25A |
|
|
|
Charge voltage |
3.65V |
|
||
|
4.8 Fast charge method |
Constant current |
100A |
|
|
|
Charge voltage |
3.65V |
|
||
|
4.9 Max continuous discharge current |
300A |
|
||
|
4.10 Pulse discharge current at 10 sec |
1000A |
|
||
|
4.11 Self-discharge |
≤1% per month |
|
||
|
4.12 Cycle life(0.5C) |
3000 cycles |
80% DOD(25±2℃) |
||
|
4.13 Operating temperature |
Charging ambient temperature |
0~65℃ |
|
|
|
Discharging ambient temperature |
-20~65℃ |
|
||
|
Storage temperature |
-20~65℃ |
|
||
|
4.14 Appearance |
Without break, distortion, contamination, leakage. |
|
||
Basic Performance
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure
is safe and good.
(3) Good performance under low temperature.discharge capacity decreases to over 90% under 0°C and dischargecapacity decreases to over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.
(7) No pollution during manufacture and usage.
Requirement for safety assurance
For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ioncell advance. And consult about the high rate current, rapid charge and special application in the same way.
